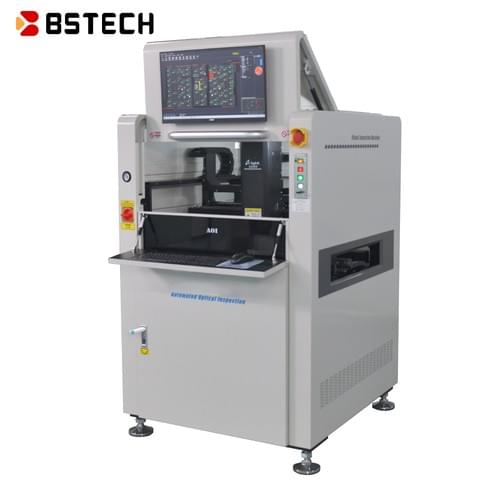

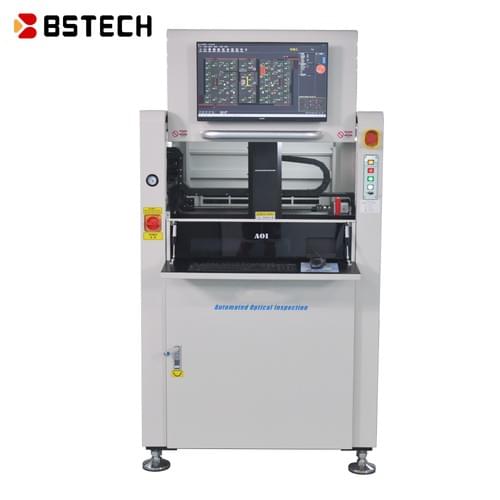

Basic Parameters

Model:
A216 (Single track) A216D (Double track) A218 (Single track) A218D (Double track)

Light source:
A216: None A216D: RGBW LED lights A218: RGBW LED lights A218D: RGBW LED lights

Industrial camera resolution:
A216: 5 megapixels A216D: 5 megapixels A218: 12 megapixels A218D: 12 megapixels

Lens resolution:
A216: 10 μm (optional: 8 μm, 5 μm) A216D: 20 μm (optional: 15 μm, 10 μm, 8 μm, 5 μm) A218: 20 μm (optional: 15 μm, 10 μm, 8 μm, 5 μm) A218D: 20 μm (optional: 15 μm, 10 μm, 8 μm, 5 μm)

Accuracy: All models: ≤10 μm

Repeatability:
All models: Height ≤1 μm (4 Sigma); Volume/acreage <1% (4 Sigma)

Gage R&R:
All models: ≤10%

Mark-point detection time:
All models: 0.3 sec/piece

Maximum measuring height:
All models: ±5 mm

Minimum element:
All models: 01005 / 03015 / 008004

Maximum PCB size (single track):
A216: 60×50 mm ～ 510×510 mm A218: 60×50 mm ～ 510×580 mm

Maximum PCB size (double track):
A216D: 60×50 mm ～ 510×310 mm A218D: 60×50 mm ～ 510×310 mm

Conveyor setup:
Supports Gerber format (274x/274d), manual teach model, CAD X/Y, part number, package type input

Operating system:
Windows 10 Professional (64-bit)

Communication:
Ethernet SMEMA
