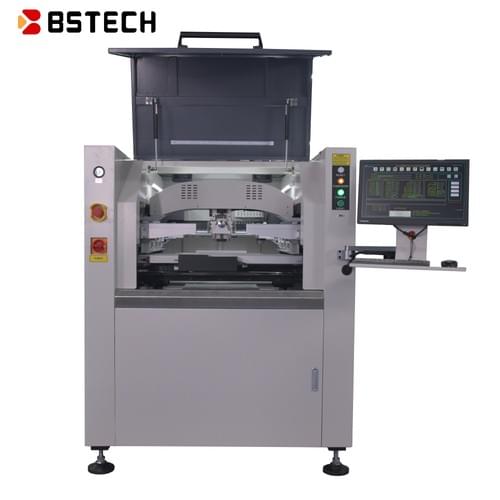

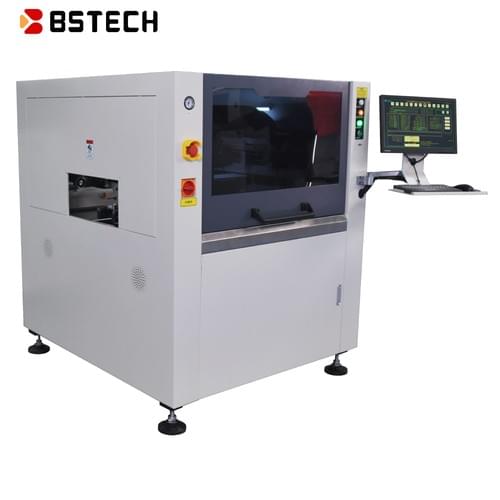

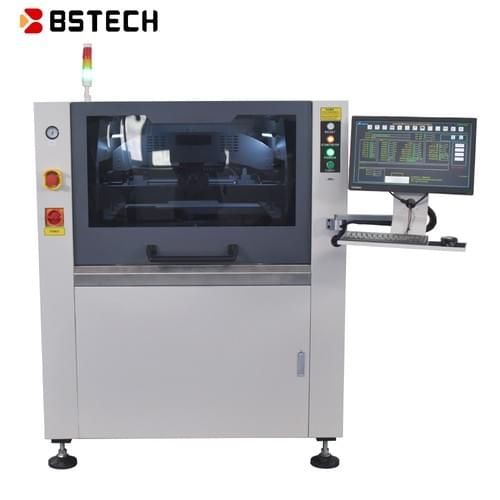

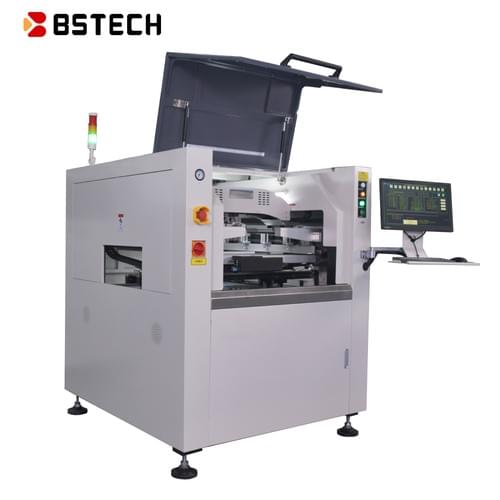

A5 Stencil Printing Machine
1. Air Consumption: Approx 5L/min.
2. Operating Temperature: -20~45.
3. Compressed Air: 4-6Kgf/cm.
4. Power Input: AC:220±10%,50/60HZ 2.5KW.
5. Control Method: PC.
6. Ambient Humidity: 30-60%.
7. Machine Dimensions: 1220(L)x1375(W)x1500(H).
8. Machine Weight: Approx:1000Kg.
9. BTB Size: 1240*3080*1500mm*2pcs
Only 1pc: 1240*1530*1500mm
2. Operating Temperature: -20~45.
3. Compressed Air: 4-6Kgf/cm.
4. Power Input: AC:220±10%,50/60HZ 2.5KW.
5. Control Method: PC.
6. Ambient Humidity: 30-60%.
7. Machine Dimensions: 1220(L)x1375(W)x1500(H).
8. Machine Weight: Approx:1000Kg.
9. BTB Size: 1240*3080*1500mm*2pcs
Only 1pc: 1240*1530*1500mm
More Details
The A5 fully automatic visual printing function perfecily meets the process reguirements of equal density spacing of 01005, 0.25 Pich, and high precision.
Basic Parameters
Screen Frames Size: 370×370 mm ~ 737×737 mm
Screen Frames Thickness: 20 ~ 40 mm
Board Positioning: Automatic Y-direction positioning
HCP-CT: 14 S
NPC-CT: <7 S
Products Changeover: <5 min
Repeat Position Accuracy: ±0.01 mm, CPK ≥ 2.0
Printing Accuracy: ±0.025 mm, CPK ≥ 2.0
PCB Size: 50×50 mm ~ 400×340 mm (510×340 mm optional)
PCB Thickness: 0.4 ~ 6 mm
Max PCB Weight: 4 kg
PCB Warpage: <1%
Transport Height: 900 ± 40 mm
Transport Method: One-stage
Transport Direction: L-R / R-L / L-R / L-R
Transport Speed: Program Control, 1500 mm/s (Max)
Squeegee Speed: 10 ~ 200 mm/sec
