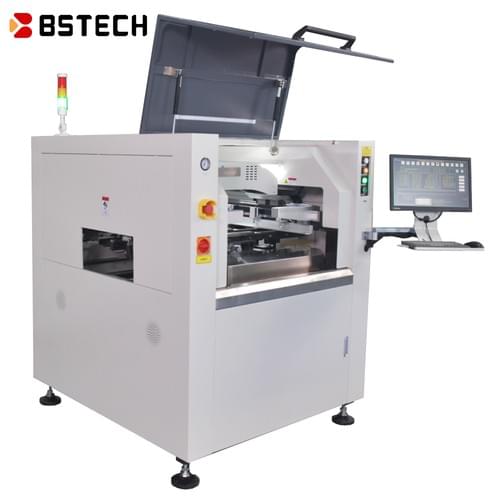

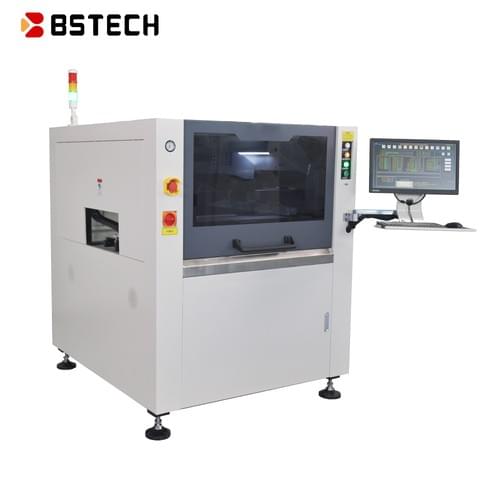

ASE Stencil Printing Machine
1. Air Consumption: Approx 5L/min.
2. Operating Temperature: -20~45.
3. Compressed Air: 4-6Kgf/cm.
4. Power Input: AC:220±10%,50/60HZ 2.5KW.
5. Control Method: PC.
6. Ambient Humidity: 30-60%.
7. Machine Dimensions: 1220(L)x1375(W)x1500(H).
8. Machine Weight: Approx:1000Kg
2. Operating Temperature: -20~45.
3. Compressed Air: 4-6Kgf/cm.
4. Power Input: AC:220±10%,50/60HZ 2.5KW.
5. Control Method: PC.
6. Ambient Humidity: 30-60%.
7. Machine Dimensions: 1220(L)x1375(W)x1500(H).
8. Machine Weight: Approx:1000Kg
More Details
ASE fully automatic visual prining function perfecty meets the process requirements of equal density spacing of 0201, 0.25 Pich, and high precision.
Basic Parameters
Screen Frames Size: 370×370 mm ~ 737×737 mm
Screen Frames Thickness: 20 ~ 40 mm
HCP-CT: 14 S
NPC-CT: <7 S
Products Changeover: <5 min
Repeat Position Accuracy: ±0.01 mm, CPK ≥ 2.0
Printing Accuracy: ±0.025 mm, CPK ≥ 2.0
PCB Size: 50×50 mm ~ 400×340 mm (510×340 mm)
PCB Thickness: 0.4 ~ 6 mm
Max PCB Weight: 4 kg
PCB Warpage: <1%
Transport Height: 900 ± 40 mm
Transport Method: One-stage
Transport Direction: L-R / R-L / L-L / R-R
Transport Speed: Program Control, 1500 mm/s (Max)
Squeegee Speed: 10 ~ 200 mm/sec
