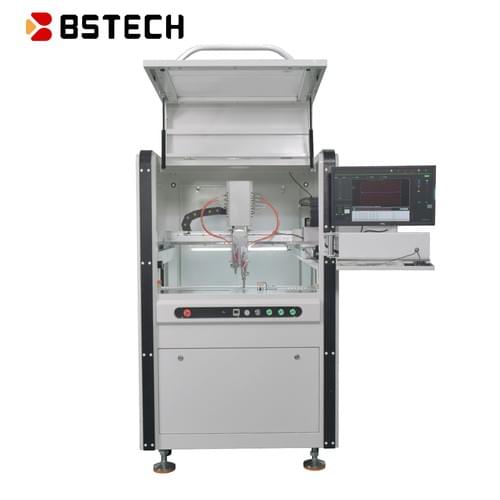

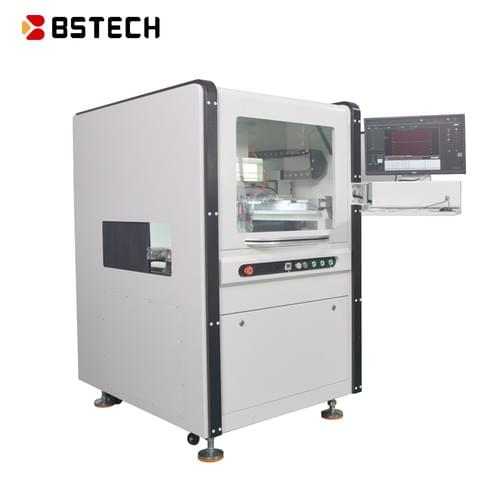

HY Series Axis selective coating machine
2. U-axis drive speed:0-400mm/s.
3. U-axis drive mode: Servo motor + precision screw + precision
reduction box.
4. Programming mode: Manual teaching.
5. Spraying mode: Atomization and dispensing + rotation.
6. Dimensions: L1035mm*W1380mm*H1700.
7. Power supply AC220V 50/60HZ.
8.Coating stroke X=450 Y=450 Z=100(mm).
9. Conveyor rail width 50-450mm.
10. PCB component height Up and down MAX100mm.
11. Number of glue valves 1 small atomizer + 1 dispensing valve
Name: Three-axis selective coating machine | Four-axis selective coating machine
Model: HY-H7 | HY-H7S | HY-H7D | HY-H9
Equipment weight: 455 KG | 440 KG | 460 KG | 470 KG
U-axis drive speed: / | / | / | 0-400 mm/s
U-axis drive mode: / | / | / | Servo motor + precision screw + precision reduction box
Programming mode: Programming mode | Manual teaching + CCD visual positioning / barcode scanner | Manual teaching + CCD large field of view programming | Manual teaching
Spraying mode: Atomization and dispensing | Atomization and dispensing | Atomization and dispensing | Atomization and dispensing + rotation
Dimensions: L1035 mm × W1380 mm × H1700 mm
Power supply: AC 220V 50/60 Hz
Coating stroke: X=450 Y=450 Z=100 (mm)
Conveyor rail width: 50-450 mm
PCB component height: Up and down MAX 100 mm
Number of glue valves: 1 small atomizer + 1 dispensing valve
