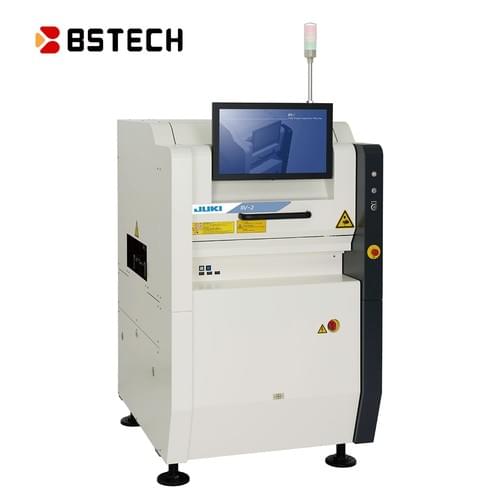

JUKI AOI Machine For Bare PCB Machine For SMT AOI Vision Inspection Machine
Showroom Location: Japan, Viet Nam
Video Outgoing-Inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of Core Components: 1 Year
Core Components: Engine, PLC
Place of Origin: Guangdong, China
Warranty: 1 Year
Condition: New
Brand Name: JUKI

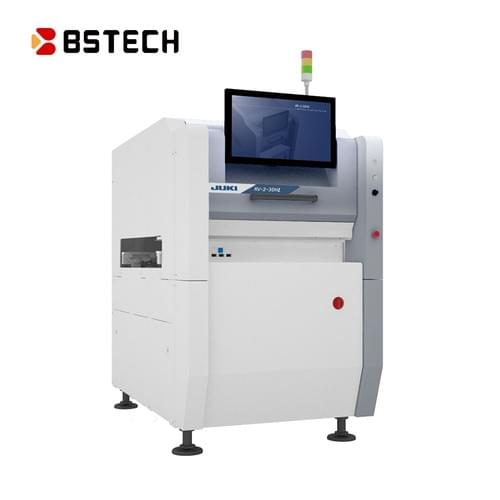

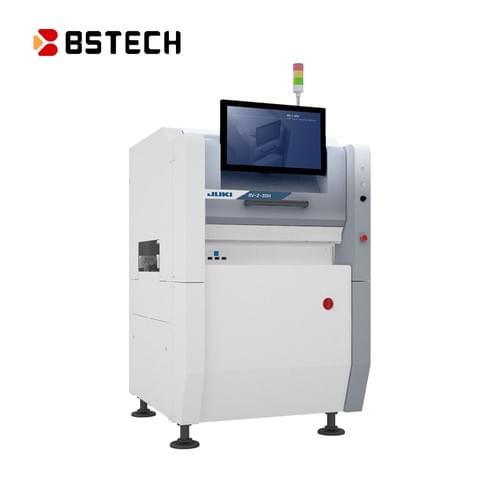

Model Number: RV2-01 / RV2-3DH-01 / RV2-3DHL-01
Specifications
Board size (standard): RV-2 (AOI/SPI): 50×50 ~ 410×360 mm RV-2-3DH (AOI/SPI): 50×50 ~ 410×300 mm RV-2-3DHL (AOI/SPI): 50×50 ~ 410×590 mm
Board size (long board): RV-2 (AOI/SPI): 630×360 mm *¹ RV-2-3DH (AOI/SPI): 50×50 ~ 630×300 mm *¹ RV-2-3DHL (AOI/SPI): 50×50 ~ 650×590 mm *¹
Marking unit (board size): RV-2 (AOI/SPI): 50×50 ~ 330×250 mm RV-2-3DH (AOI/SPI): 50×50 ~ 330×250 mm RV-2-3DHL (AOI/SPI): 50×50 ~ 330×590 mm
Inspection resolution: RV-2 (AOI/SPI): 15 μm (standard) / 10 μm (high resolution) *¹ RV-2-3DH (AOI/SPI): 12 μm (standard) / 5 μm (high resolution) *¹ RV-2-3DHL (AOI/SPI): 12 μm (standard) / 5 μm (high resolution) *¹
Display field angle: RV-2 (AOI/SPI): 30.0×30.0 mm, 20.0×20.0 mm *¹ RV-2-3DH (AOI/SPI): 48.0×36.0 mm, 20.0×15.0 mm *¹ RV-2-3DHL (AOI/SPI): 48.0×36.0 mm, 20.0×15.0 mm *¹

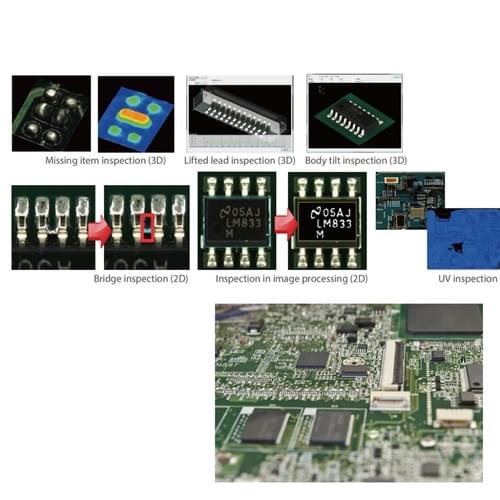

Item of inspection: RV-2 (AOI/SPI): Missing component, Position displacement, Polarity, Front/Rear reversal, Unsoldered, Bridge, Quantity of solder, Missing insertion, Character recognition *¹ RV-2-3DH (AOI/SPI): Missing component, Position displacement, Polarity, Front/Rear reversal, Unsoldered, Bridge, Quantity of solder, Missing insertion, Character recognition *¹ RV-2-3DHL (AOI/SPI): Missing component, Position displacement, Polarity, Front/Rear reversal, Unsoldered, Bridge, Quantity of solder, Missing insertion, Character recognition *¹
FOV (optimum): RV-2 (AOI/SPI): 2D: 0.2 sec/frame RV-2-3DH (AOI/SPI): i-3D SPI: 0.50 sec/frame RV-2-3DHL (AOI/SPI): i-3D SPI: 0.51 sec/frame
Power supply: RV-2 (AOI/SPI): AC 3-phase 200 ~ 230 V *² RV-2-3DH (AOI/SPI): AC 3-phase 200 ~ 230 V *² RV-2-3DHL (AOI/SPI): AC 3-phase 200 ~ 230 V *²
Apparent power: RV-2 (AOI/SPI): 2.0 kVA or less RV-2-3DH (AOI/SPI): 2.0 kVA or less RV-2-3DHL (AOI/SPI): 2.0 kVA or less
Operating air pressure: 0.5 MPa
Air consumption (standard): 10 L/min
Machine dimensions (W×D×H): RV-2 (AOI/SPI): 940×1,276×1,530 mm RV-2-3DH (AOI/SPI): 940×1,276×1,530 mm RV-2-3DHL (AOI/SPI): 940×1,800×1,530 mm
Mass (approximately): RV-2 (AOI/SPI): 1,000 kg RV-2-3DH (AOI/SPI): 1,000 kg RV-2-3DHL (AOI/SPI): 1,250 kg
Notes: *¹ Option *² External transformer option available
Packaging and delivery
Selling Units: Single item
Single package size: 940X1800X1530 cm
Single gross weight: 1250.000 kg
