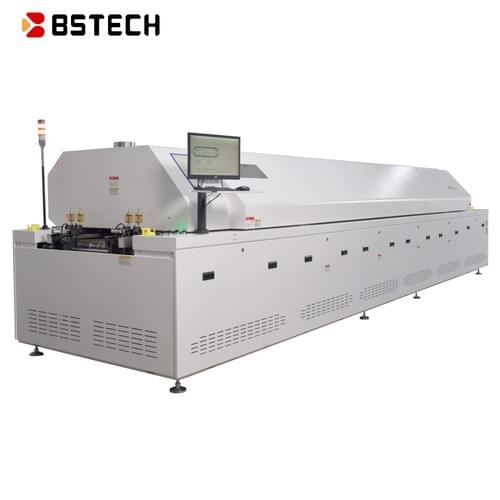

Lead-free hot air reflow oven
2. Siemens PLC + PlD closed-loop control to achieve high prectise temperature control and repeatable profiles.

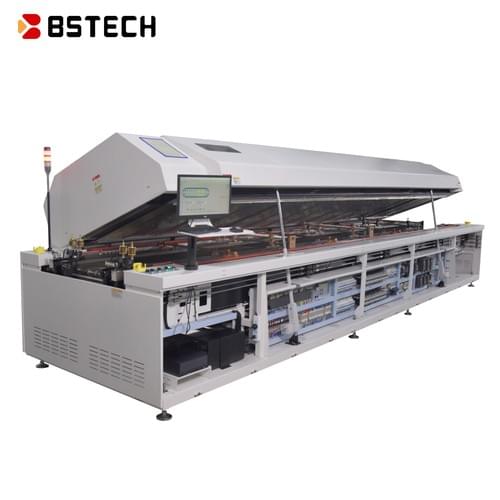

3. Modular design, convenient and fast maintenance, reducing maintenance time and cost.
4. The rail surface is treated with a hardening process to make it more stable.
5. Sound and light alarm and information prompt function with
various faults, including temperature deviation, speed deviation, detention board and drop board, wind fault and error operation, etc.
6. The new gas management system can make the hot gas
exchange efficiency in the furnace higher, to obtain better thermal compensation and thermal efficiency, and fully meet the
requirements of various lead-free soldering process.
Model:
VS-0802/DS-800 VS-0802-N VS-0802-X VS-0802-NX
VS-1003/DS-1000 VS-1003-N VS-1003-X VS-1003-NX
VS-1204/DS-1200 VS-1204-N VS-1204-X VS-1204-NX
VS-0802D/DS-800D VS-0802D-N VS-0802D-X VS-0802D-NX
VS-1003D/DS-1000D VS-1003D-N VS-1003D-X VS-1003D-NX
VS-1204D/DS-1200D VS-1204D-N VS-1204D-X VS-1204D-NX
Machine specification:
Dimensions (L×W×H):
VS-0802/DS-800: 5300×1420×1520 mm
VS-1003/DS-1000: 6567×1420×1520 mm
VS-1204/DS-1200: 7733×1420×1520 mm
VS-0802D/DS-800D: 5300×1640×1520 mm
VS-1003D/DS-1000D: 6567×1640×1520 mm
VS-1204D/DS-1200D: 7733×1640×1520 mm
Weight:
VS-0802/DS-800: 2650/2950 kg
VS-1003/DS-1000: 2850/3150 kg
VS-1204/DS-1200: 3050/3250 kg
VS-0802D/DS-800D: 2950/3250 kg
VS-1003D/DS-1000D: 3150/3450 kg
VS-1204D/DS-1200D: 3350/3650 kg
Temperature zone:
VS-0802/DS-800: Top 8, Bottom 8, Length 4362 mm
VS-1003/DS-1000: Top 10, Bottom 10, Length 5463 mm
VS-1204/DS-1200: Top 12, Bottom 12, Length 6521 mm
Number of cold zones:
VS-0802/DS-800: Top 2, Bottom 0 / Top 3, Bottom 2
VS-1003/DS-1000: Top 3, Bottom 0 / Top 3, Bottom 3
VS-1204/DS-1200: Top 4, Bottom 0 / Top 4, Bottom 4
Length of cold zones:
VS-0802/DS-800: 685 mm
VS-1003/DS-1000: 1040 mm
VS-1204/DS-1200: 1430 mm
Heating zone rectifying plate structure:
Thick aluminum plate
Cooling method:
Greenhouse air cooling / cold water cooling
Control system: PID closed-loop control + SSR drive
Power requirements: 3Φ 380V 50Hz
Startup / normal operating power:
VS-0802/DS-800: 30KW / 9KW
VS-1003/DS-1000: 32KW / 10KW
VS-1204/DS-1200: 36KW / 10KW
Heating time: About 25 min
Temperature accuracy: ±1℃
Lateral temperature difference: ±1.5℃
Transportation system:
Rail structure: Overall two-stage
Chain structure: 35B single buckle with rib and pin nickel-plated manganese steel chain
Maximum plate width:
VS-0802/DS-800: 400 mm (optional 610 mm) VS-1003/DS-1000: 280 mm (optional 300 mm)
Rail width adjustment range:
VS-0802/DS-800: 50–400 mm (optional 50–610 mm)
VS-1003/DS-1000: 50–280 mm (optional 50–300 mm)
Transportation direction: L to R (optional R to L)
Transport plate height: 900±15 mm
Automatic lubrication system: Standard lubricant automatic filling and manual filling function
