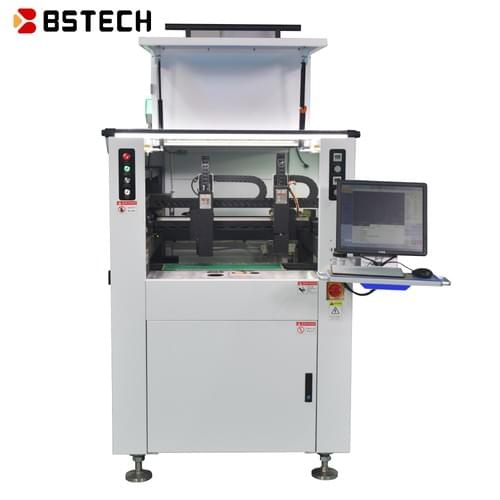

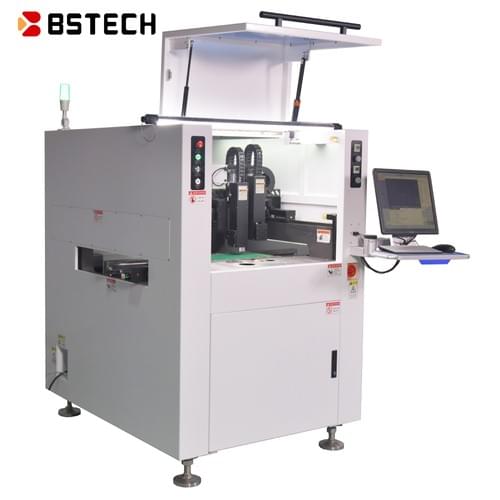

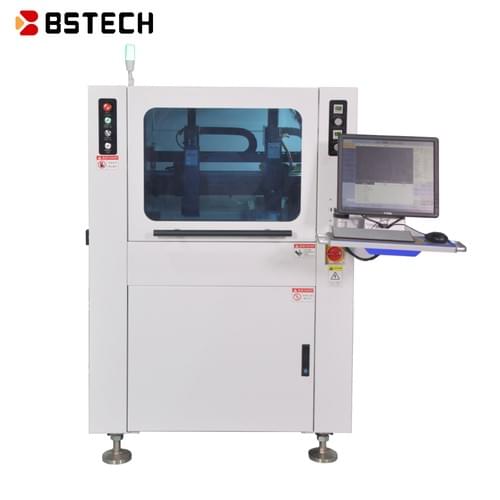

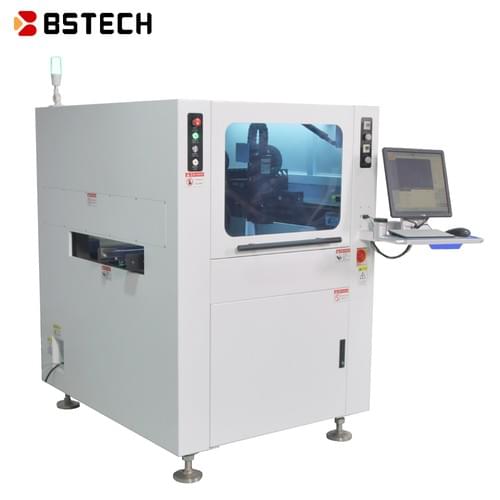

Model

TH-SD

LM-6DZ

Operation size

L1: 450×280×50 mm L2: 450×280×50 mm

Single valve: X650 Y650, Double valve: X620 Y620

Machine size

TH-SD: L950×W1280×H1680 mm

LM-6DZ: L1150×W1600×H1600 mm

Maximum acceleration of moving platform

TH-SD: 1.0 G

LM-6DZ: Linear single machine drive: 2.0 G

Maximum operating speed of platform

TH-SD: 1000 mm/s

LM-6DZ: 2000 mm/s

X/Y repetition accuracy

TH-SD: ±0.01 mm

LM-6DZ: ±0.005 mm

X/Y positioning accuracy

TH-SD: ±0.015 mm

LM-6DZ: ±0.01 mm

Axis drive

TH-SD: 3-axis drive: AC, servo motor

LM-6DZ: 4-axis drive: X/Y axis linear motor, Z-axis servo screw

Z-axis repetition accuracy

TH-SD: ±0.015 mm

LM-6DZ: ±0.01 mm

Z2-axis repetition accuracy

TH-SD: Not applicable

LM-6DZ: ±0.01 mm

Bottom preheating system

TH-SD: Non-contact two-stage preheating and intelligent temperature control

LM-6DZ: Infrared heating module (hot air optional)

Applicable substrate thickness

TH-SD: Thickness ≥ 0.6 mm, board edge ≥ 2.5 mm

LM-6DZ: Thickness ≥ 0.5 mm

Total power

TH-SD: 2.5 KW

LM-6DZ: 3.5 KW

Weight

TH-SD: About 800 kg

LM-6DZ: 1300 kg

Standard spray valve

TH-SD: Pneumatic injection (piezo valve, screw valve optional)

LM-6DZ: Non-contact jet valve (optional pneumatic, piezoelectric)

Nozzle cleaning device

TH-SD: Dedicated code reader

LM-6DZ: Automatic vacuum cleaning/roller

Machine vision

TH-SD: CCD, flight recognition

LM-6DZ: Tri-color coaxial optical/program control

Weight measuring system

TH-SD: Machine built-in, reading accuracy: 0.1 mg (optional: 0.01 mg)

LM-6DZ: Laser altimetry: ±0.005 mm

Conveyor system

Lane conveyor belt: PVC synchronous belt (flat belt optional)

Conveyor belt load-bearing: ≤3.5 kg

Speed of double-lane conveying system: 300 mm/s

Track width: Automatic control, program memory

Feed device: 30/50cc

Nozzle cleaning device: Automatic vacuum cleaning/roller

Work interface: Chinese/English

Operating system: Windows 10

Liquid level monitoring: Capacitance sensor

Alarm: Sound, light, and interface alarm

Remote centralized control: Supports control in network

Authority management: Three levels of authority

Height of guide rail above ground: 900 ± 50 mm

Scanner socket: RS 232

Communication interface: Smema

Input voltage: 220V 50–60Hz

Pressure: 0.6 Mpa

Work environment: Temperature: 10–40°C, Humidity: 40–70%
