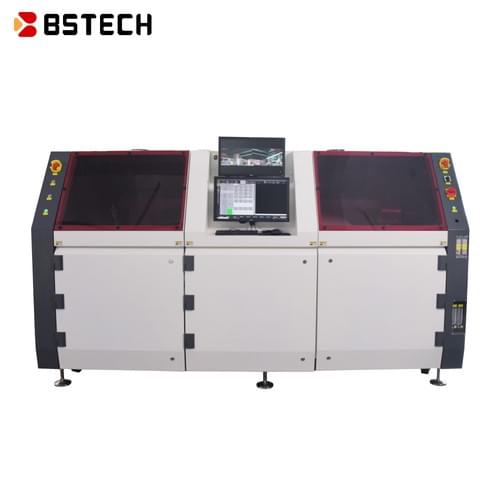

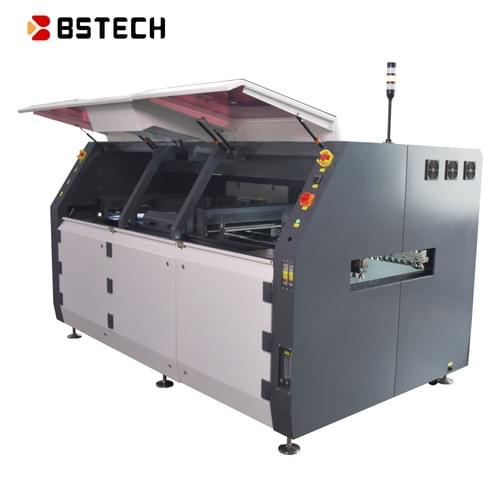

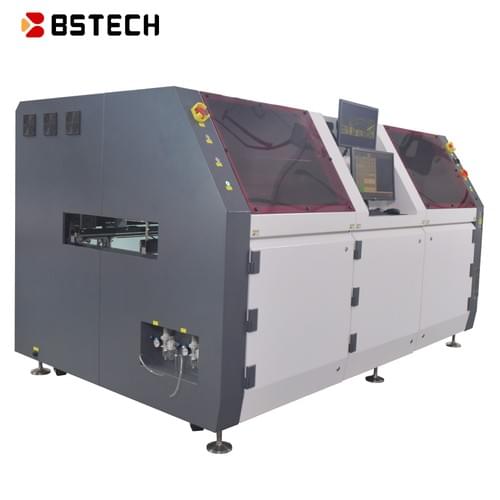

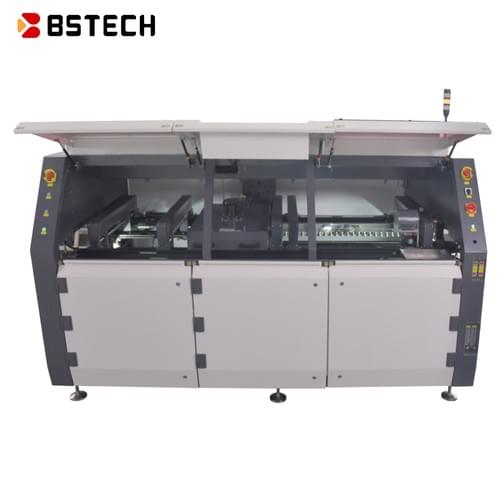

Features :

1.Adopt industrial computer + professional multi-axis motion control card control to achieve high-precision motion control;

2.Independently designed control software, which can directly use PCB pictures or GERBER documents for path editing.Course, path starting point, welding movement speed, air travel speed, Z-axis height, peak height, etc.All can be set up on the computer.

3.The machine can automatically monitor and record the air intake pressure, transportation speed, preheating temperature, and tin furnace temperature.Including key process parameters, etc. At the same time, the machine has automatic alarms and tips for various common faults Function;

4.The machine comes with its own formula function, which can automatically record the expensive setting of various process parameters to facilitate product production.Save and call the pieces;The movement of flux nozzles and solder nozzles is made of aluminum all-in-one with protective precision X and Y flat.The table is driven by aprecision ball screw + servo motor, with accurate control, which can achieve high precision of low noise Degree transmission;

5.The product delivery is driven by their own independent stepper motors, which are implemented in two stages, and the front section (including flux)The spray section and preheating section) are aluminum guide rail + imported roller chain conveyor structure.rear section (solderSection) Adopts a precision stainless steel roller conveying structure.which can achieve the stability and accuracy of product transmission.

6.The product welding process can be displayed in real time, can be transmitted to computer software through the camera, and can be welded, take photos, record videos and save them;

7.The overall frame adopts a steel welded structure, and the machine is stable and durable and not easy to deform.

Technical Parameters - Machine Overall

Machine size: 2950(L) × 1650(W) × 1675(H) mm

Total machine power/operating power: 20kW / 6–8kW

Power supply: Single-phase 380V

Net weight: 1500 kg

Air source requirements: Pressure 0.4–0.6 MPa, flow 8–12 L/min

Nitrogen source requirements: Pressure 0.3–0.5 MPa, flow ≥ 5 cubic meters per hour, purity ≥ 99.998%

Air volume requirements: Above the spray: 800–1000 cbm/h; Above the tin furnace: 600–800 cbm/h

Pallet

Pallet passing size: L260 × W260 ～ L500 × W500 mm (Pallet process edge thickness: 3–10 mm)

Double nozzle spacing: 165–265 mm

Maximum welding area: L500 × W500 mm

Control and Transport

Control system: Industrial computer + controller

Shipping width: 50–500 mm

Product conveying: Spray and preheating section: chain conveying; solder section: roller conveying

PCB transport direction: Left to right, horizontal transport

Maximum component height: 100 mm on board, 30 mm off board

Transport load-bearing: ≤ 10 kg

Transport height: 900 ± 20 mm

Spray Motion Platform

Motion axis: X, Y

Motion control: Closed-loop control + servo motor

Positioning accuracy: ± 0.15 mm

Rosin Management

Flux nozzles: Stainless steel electronic jet mesh × 2

Flux containers: Pressure tank, capacity 1L × 2

Alcohol container volume: Pressure tank, capacity 1L × 1

Warm-up Section

Warm-up mode: Warm air warm-up, lower infrared preheating

Warm-up power: 13 kW

Temperature range: Room temperature to 240°C

Solder Motion Platform

Motion axis: X, Y, Z

Motion control: Closed-loop control + servo motor

Positioning accuracy: ± 0.15 mm

Solder Part

Tin tank capacity: 15 kg × 2

Tin temperature control: PID

Melting time: ≤ 40 minutes

Maximum tin furnace temperature: 350°C

Tin bath power: 1.2 kW × 2

Nozzle material: Low expansion alloy

Tin nozzle (standard): 5 × 2
