Features

1.Automatic cleaning mode: the net plate is tossed up and down, while the spraying system high-pressure spray heating cleaning liquid, which can make the net plate to be fully automatic cleaning, rinsing, drying the whole process;

2.Visualization of the whole process: Visual window and LED light device, clear cleaning process;

3.The most scientifc nozzle design (patent): use about 8 spray arm distribution -completely solve the cleaning blind area, sprayarm, nozzle can be disassembled;

4.The pressure of the visual nozzle can be adjusted: it solves the problem of collision and spatter of small workpiece under the condition of high-pressure spray during cleaning;

5.The view window and the entrance of the screen are equipped with photoelectric sensors to protect personal safety. The standard diluent tank\the heating system of the rinse trough greatly improves the cleaning efficiency and reduces the cleaning time;

6.Comprehensive cleaning system: compatible with running washing or chemical cleaning, for SMT;

7.Organic and inorganic pollutants such as rosin, water-soluble flux, no-clean flux/solder paste, etc. remain on the surface of THT PCBA after welding;

8.Fuselage quality: whole stainless steel fuselage, acidproof, alkaline and other cleaning fluids;

9.Cleaning the built-in filter device can realize the circulation of solvent and reduce the amount of solvent. The fixed barrier has emergency stop button and leakage protection function;

10.Lower operating costs: lower equipment investment costs, localized services, teams, and adequate spare parts supply.

Technical Parameters

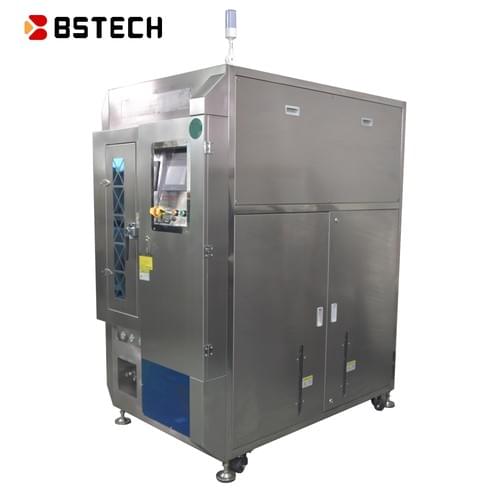

Model: PB-1000X / PB-1000Z

Application of screen size: 750(L) × 750(W) × 40 mm (H) [Large size required]

Maximum tank volume: 2 × 90 Liters (Manual)

Cleaning pressure: 3 ~ 6 kg/cm²

Cleaning method: Symmetrical complementary spray cleaning → spray rinse → air drying → heating and drying

Cleaning time: 2 ~ 5 minutes (paste)

Rinse time: 1 ~ 3 minutes (paste)

Drying time: 3 ~ 5 minutes

External air source: 0.45 ~ 0.7 MPa

Power: Rated power: 18 KW ; Total power: 34 KW

Gas consumption: 150 ~ 350 L/min

Exhaust port size: 123 × 30 mm (H), Maximum gravitational wind speed: 3 m/s

The plate method (Manual door): Available

The plate method (Automatic door): Available

External dimensions: 1150 mm (L) × 1650 mm (W) × 2050 mm (H)

Net weight of machine: Approximately 590 kg
