Features

1.Fully automatic cleaning mode: During the operation of the equipment, the workpiece moves back and forth with the cleaning basket in the cleaning basket. At the same time, the spray system high-pressure sprays the heated cleaning liquid, which can make the PCBA fully automatic cleaning, rinsing and drying processes;

2.The most scientific nozzle design (patent): using up and down dislocation, left and right gradually increasing distribution-completely solve the cleaning blind area, 3 layers of 610mmx 600mm super large area cleaning, spray arm can be detachable from 3 layers to 2 layers to solve the placement of PCBA boards of various sizes ;

3.The visual nozzle pressure can be adjusted: it solves the collision and splashing problems of small-sized workpieces under high-pressure spray conditions during cleaning;

4.Comprehensive cleaning system: compatible with running water washing or chemical cleaning, thoroughly and effectively cleaning organic and inorganic contaminants such as rosin, water-soluble flux, no-clean flux/solder paste and so on on the surface of PCBA soldering of SMT and THT;

5.Body material: overall stainless-steel body, resistant to acid, alkali and other cleaning fluids.

Technical Parameters

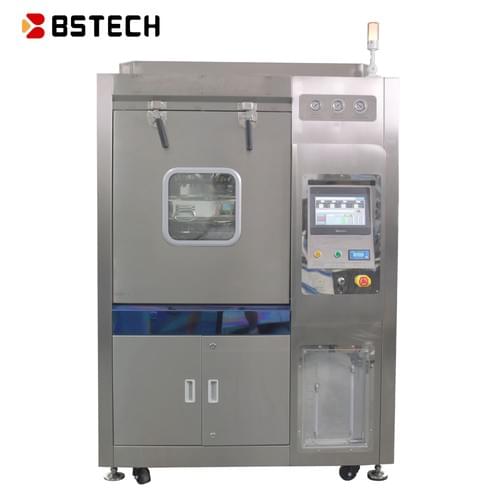

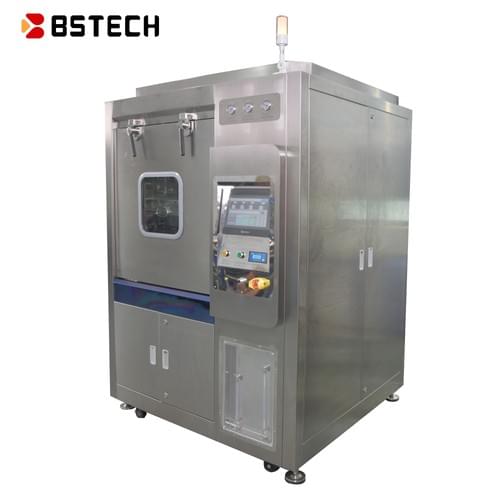

Model: PBT-800P

Clean area size: 610 mm (L) × 560 mm (W) × 140 mm (H) Cleaning basket: 3 layers

Cleaning temperature (liquid): Room temperature to 75°C (adjustable)

Conveying surface width: 550 mm

Rinse temperature (DI water): Room temperature to 55°C (adjustable)

Heating drying time: 0 to 99 minutes (adjustable)

Heating and drying temperature: Room temperature to 99°C (adjustable)

Power: Rated power: 14.5 kW ; Total power: 27 kW

Resistivity meter monitoring range: 0 to 18 MΩ

Power/gas source: AC 380V 50Hz 65A / 0.45 MPa to 0.7 MPa

Maximum volume of liquid tank: 60 L / Rise

Injection pressure: 3 to 5 kg/cm² (adjustable)

Exhaust port size: Φ76 mm (W) × 20 mm (H)

External dimensions: 1360 mm (L) × 1400 mm (W) × 1950 mm (H)

Net weight of machine: Approximately 610 kg
