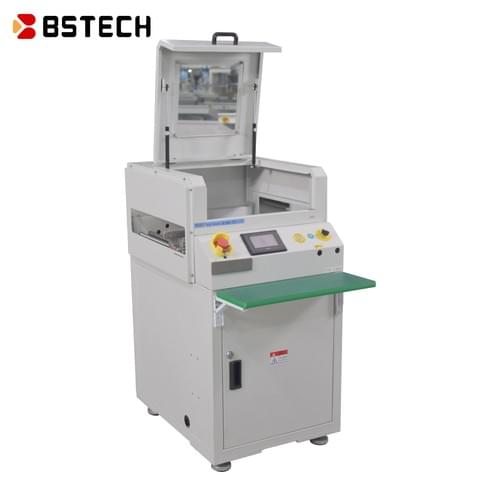

PTB-F Series Reject Conveyor
Features:
1. Green flat import anti-static transmission belts which are long-term use and easy maintenance.
2. Sheet metal weighting structures which are stable machines and not easy to shift.
3. PLC control system, universal SMEMA communication method.
4. HMI interaction interface and easy to understand.
5. Multiple electrical distribution circuit protection, safe and
reliable.
6.It is used for ng screening after dual-track line detection
equipment, and it can also be used for caching. Number of floors: 3-25.
1. Green flat import anti-static transmission belts which are long-term use and easy maintenance.
2. Sheet metal weighting structures which are stable machines and not easy to shift.
3. PLC control system, universal SMEMA communication method.
4. HMI interaction interface and easy to understand.
5. Multiple electrical distribution circuit protection, safe and
reliable.
6.It is used for ng screening after dual-track line detection
equipment, and it can also be used for caching. Number of floors: 3-25.
More Details
Technical Parameters
Description: Temporary storage of NG products for SMT devices
Cycle time: 0.5–20 meters/min or specified by customer
Power supply and electric load: Single-phase 220V AC, up to 300VA
Board thickness: Minimum 0.6 mm
Specifications & Parameters
Model: PTB-F460
Circuit board effective size: 80(L) × 50(W) – 510(L) × 460(W) mm
Transmission height: 900 ± 20 mm
Dimensions: 600/800/1000(L) × 780(W) × 900(H) mm
Weight: 120 kg
Model: PTB-F460-D
Circuit board effective size: 80(L) × 50(W) – 510(L) × 460(W) mm
Transmission height: 900 ± 20 mm
Dimensions: 1000/800/1000(L) × 1000(W) × 900(H) mm
Weight: 160 kg
