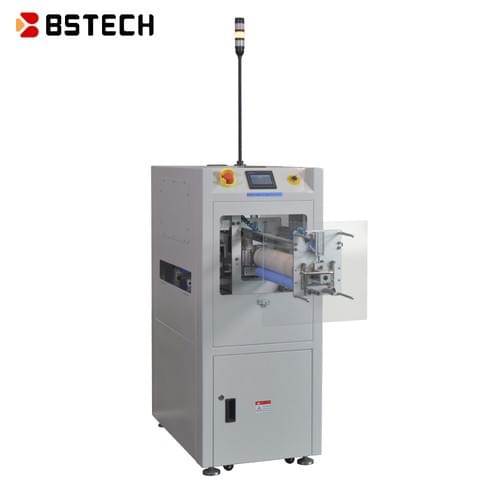

PTCC Series Dust Remover
2. Standard SMEMA signal communication.
3. Can be applied to SMT process PCB cleaning after Al, roller, brush can be cleaned independently, flexibility, optional vacuum cleaning.
4. Patented coupled drive structure for better machine operation and longer component life.
5. Roller set and support group drawer design for easy operation and maintenance.
Technical Parameters
Description: Used between the upper plate and the printer, suitable for AI and SMT process cleaning needs, or very high standard cleaning requirements
Brush speed: Stepping motor 200–1200 rev/min (data setting)
Power supply and electric load: 1P 3W AC 220 50/60Hz, Power: 50W
Air pressure and air flow: 4–6 Kg/cm², Intake pipe size 8mm
Thickness of PCBs: 0.7–3mm (minimum)
Specifications & Parameters
Model: PTCC-350
Circuit board effective size: 80(L)×60(W)–510(L)×380(W)
Transmission height: 900 ± 20 mm
Dimensions: 675(L)×1030(W)×1350(H) mm
Weight: 165 kg (for both models)
Model: PTCC-460
Circuit board effective size:80(L)×60(W)–510(L)×460(W)
Transmission height: 900 ± 20 mm
Dimensions: 675(L)×1030(W)×1350(H) mm
Weight: 165 kg (for both models)
