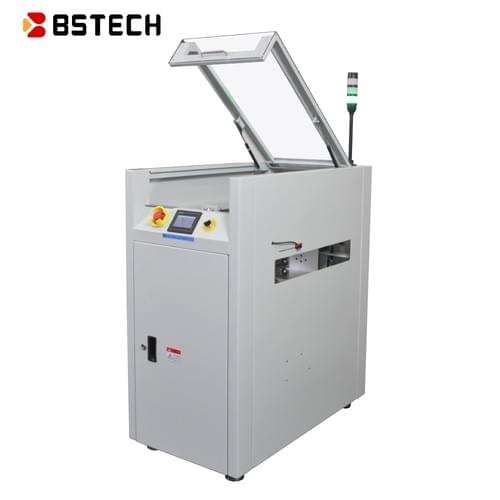

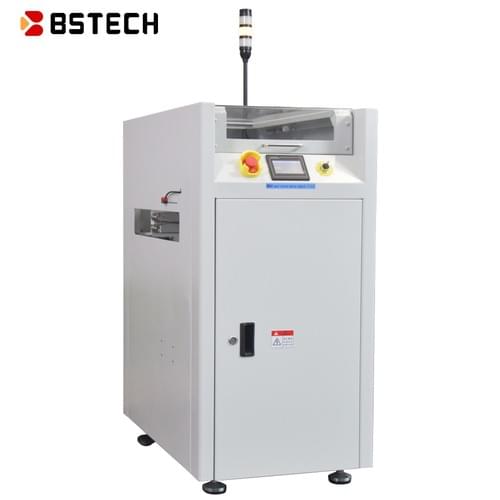

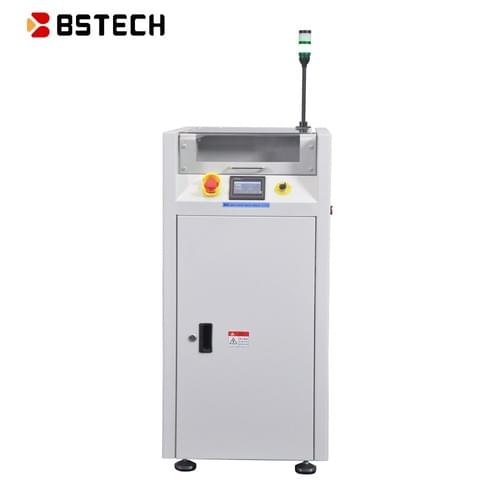

PTK-350/460/550 Intelligent Shuttle Conveyor
1. PLC control, touch screen control panel, simple and easy to
understand.
2. Full data input and positioning, simple and easy to understand.

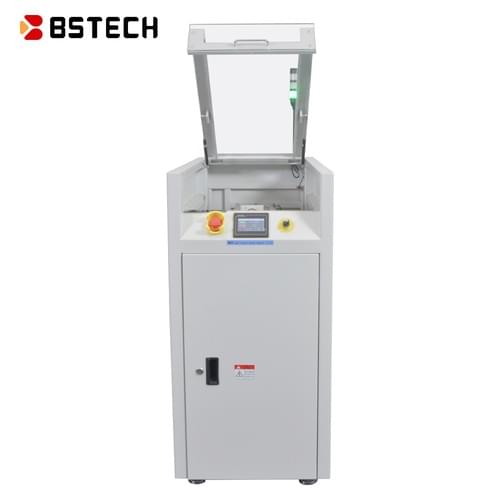

3. ESD anti-static visual sunroof design, convenient for monitoring and debugging.
4. Smooth transfer speed, accurate displacement positioning, low slider noise.
5 .MES docking is adopted, equipped with high-precision closed-loop stepping, and realizes intelligent automatic width adjustment of tracks.
Technical Parameters
Description: Used for connection or operator inspection between SMT equipment
Conveyor speed: 0.5–20 meters/min (or specified by customer)
Power supply and electric load: Single-phase 220V AC, up to 300VA
Board thickness: Minimum 0.6 mm
Specifications & Parameters:
Model: PTB-460
Circuit board effective size: 80(L) × 50(W) – 510(L) × 460(W) mm
Transmission height: 900 ± 20 mm
Dimensions: 500–2500(L) × 630(W) × 900(H) mm (Height of the illuminator is 1800 mm)
Weight: 50–130 kg
Model: PTC-460
Circuit board effective size: 80(L) × 50(W) – 510(L) × 460(W) mm
Transmission height: 900 ± 20 mm
Dimensions: 500–2500(L) × 740(W) mm
Weight: 65–170 kg
Model: PTB-D300
Circuit board effective size: Maximum width of both sides 300 mm
Transmission height: 900 ± 20 mm
Dimensions: 500–1500(L) × 750(W) mm
Weight: 70–145 kg
