Basic Parameters

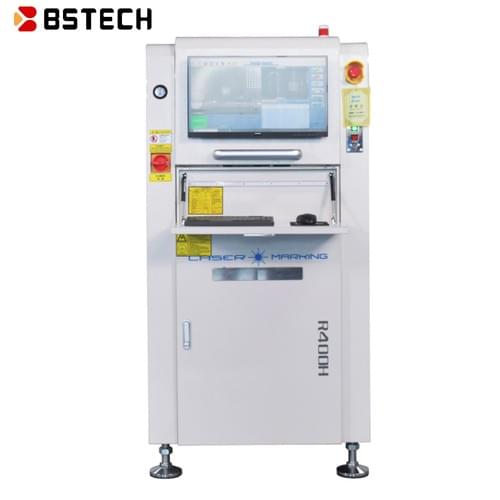

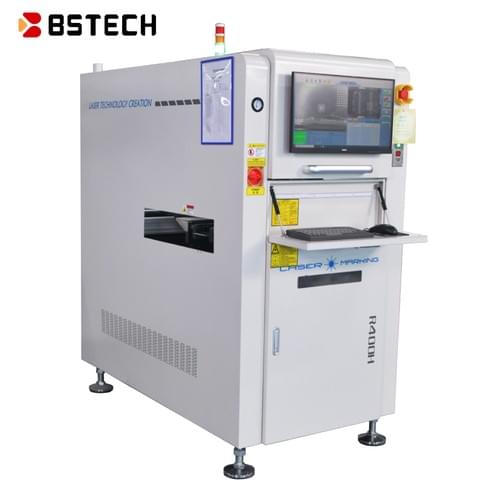

Model: R400H

Laser wavelength: 355nm / 532nm / 1064nm / 10600nm

Laser power: 3W / 5W / 7W / 10W / 20W / 30W

Marking range: 50×50 mm ～ 300×400 mm

Marking speed: The speed can reach up to 7000 mm/s

Marking position accuracy: ±0.05 mm (customizable)

Repeat positioning accuracy: ±0.02 mm

PCB maximum size: 400×400 mm, suitable for PCB, panel, mirror board, and plug-in PCB

Supported barcodes:

1D: Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN, etc.

2D: DataMatrix, QR Code, Micro QR Code, PDF417, Code 49, Code 16K, etc.

Processable QR code size: 1.5×1.5 mm ～ 20×20 mm (minimum size depends on QR code content)

Character types: True Type, JSF, SHX, DMF

File formats: DXF, PLT, Excel, TXT, and other common file formats

Power supply: 220V / 50Hz, 3000W

Weight: 750 kg

Equipment dimensions (L×W×H): 810 × 1550 × 1450 mm

Environmental requirements: Ambient temperature: 20–28°C; Humidity: 30%–60%

Air pressure source: 0.4–0.6 MPa
