Basic Parameters

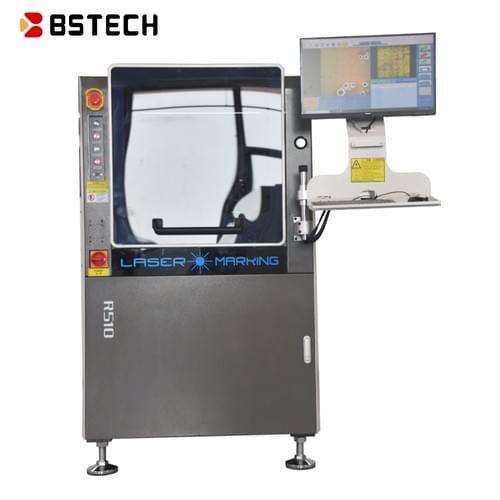

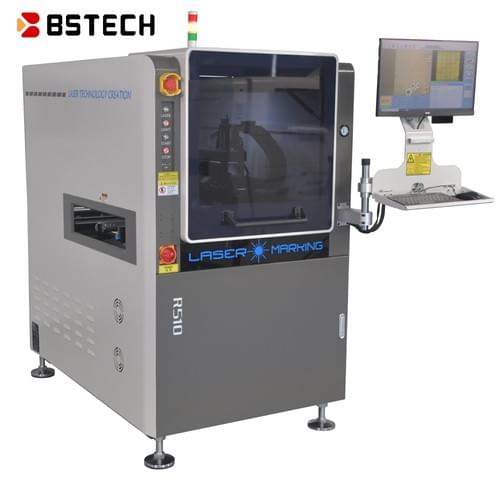

Model: R510 (Coaxial Single-side)

Laser wavelength: 3355nm / 532nm / 1064nm / 10600nm

Laser power: 3W / 5W / 7W / 10W / 20W / 30W

Marking range: 50×50 mm ～ 510×460 mm

Marking speed: Up to 7000 mm/s

Marking position accuracy: ±0.05 mm (customizable)

Repeat positioning accuracy: ±0.02 mm

PCB max size: 510×460 mm (Thickness: 0.5 mm～5 mm, customizable)

Supported materials: PCB, Panel, Mirror Board, Plug-in PCB

Supported barcodes: 1D: Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN, etc. 2D: DataMatrix, QR Code, Micro QR Code, PDF417, Code 49, Code 16K, etc.

Processable QR code size: 1.5×1.5 mm ～ 20×20 mm (minimum size depends on laser type)

Character types: True Type, JSF, SHX, DMF

File formats: DXF, PLT, Excel, TXT, and other common formats

Power supply: 220V / 50Hz, 2500W

Weight: 750 kg

Equipment dimensions: 920×1500×1500 mm

Environmental requirements: Ambient temperature: 20–28°C, Humidity: 30%–60%

Air pressure source: 0.4–0.6 MPa
