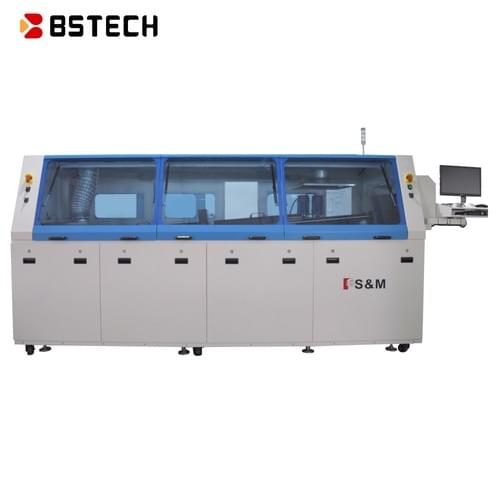

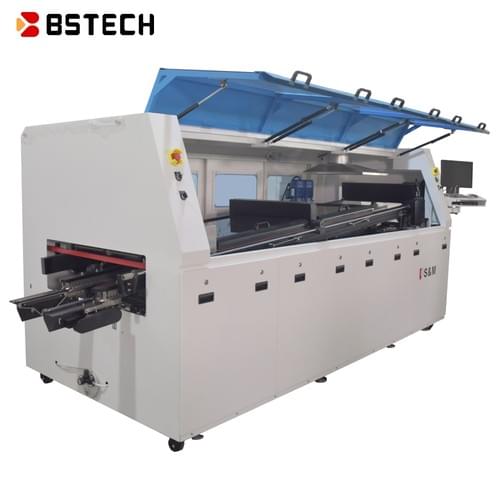

SA-350/SA-450 Nitrogen/air wave solder
  • SA-350/SA-450 Nitrogen/air wave solder
  • SA-350/SA-450 Nitrogen/air wave solder
  • SA-350/SA-450 Nitrogen/air wave solder

SA-350/SA-450 Nitrogen/air wave solder

1. Windows 10 operating system, which can realize free switching between English and Chinese in the operation interface.
2. Modular design, convenient and fast maintenance, reducing maintenance time and cost.
3. Four-stage independent drawer type super long hair preheating zone can effectively reduce the temperature difference of over-
furnace products and improve product quality.
4. Tin furnace is equipped with an electric lifting and running
mechanism as standard, and both the operation surface and back surface can be operated.
5. Tin furnace standard with heating secondary monitoring foolproof system, can effectively prevent abnormal heating of tin
furnace.
6. The equipment is equipped with a pressure tank constant
pressure storage system to ensure that the pressure in the flux spraying is relatively stable.
7. The equipment is equipped with various sound and light alarms and prompt functions, including temperature deviation, speed
deviation, wave and wind fault, wrong operation, etc.
Get A Quote
Get A Quote
More Details

Basic Parameters

Model
: SA-350 / SA-450

PCB Size: Max 350 mm / Max 450 mm

Transfer Speed: 400 ~ 1800 mm/min

Preheater Power: 21.6 KW

Tin Furnace Power: 18 KW

Transmission Motor: 1ΦAC 220V 90W

Cooling Fan: 1ΦAC 220V 370W

Tin Wave Motor: 2 ~ 3ΦAC 220V 370W

Cleaning Motor: 1ΦAC 220V 30W

Tin Furnace Temperature: Room temperature ~ 300°C

Tin Furnace Capacity: 480 kg / 520 kg

Solder Angle: 5.5° ± 1.0° / Adjustable

Gas Source: >4 kg/cm²

Automatic Addition of Flux: Standard configuration

Normal / Starting Power: 12 kW / 29.5 kW (SA-350) 13 kW / 36.5 kW (SA-450)

Net Weight: 1650 kg (SA-350) 1800 kg (SA-450)

Dimensions (mm): 4250 (L) × 1580 (W) × 1650 (H)

Power Supply: 3Φ380V
