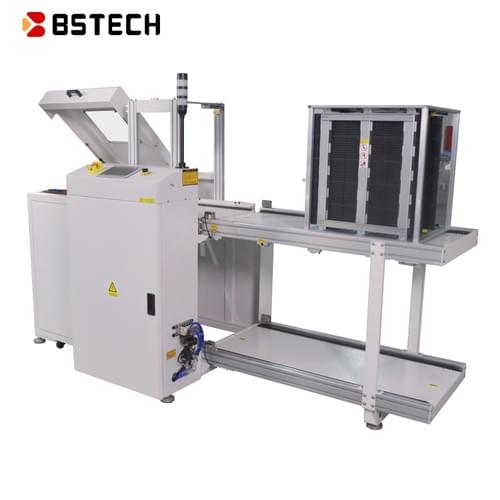

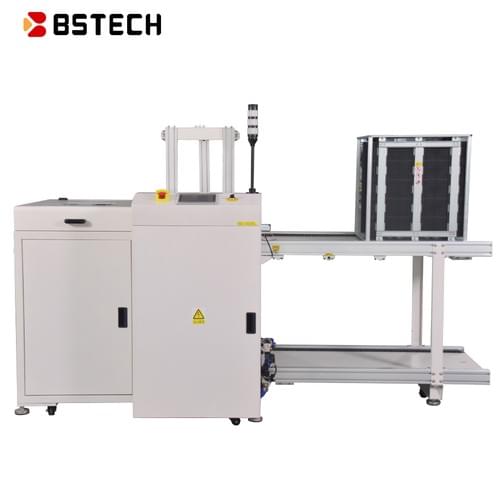

SL-3Z Series Vacuum Bare Loader
1. Top board device of SMT production line circuit board.
2. PLC control, color HMl operation system.
3. Stepping motor push plate structure, pushing plate speed is
adjustable.
4. Auxiliary positioning braking system, accurate positioning, fast lifting speed and high production efficiency.
5. PLC control system, multiple electrical circuit protection design which is security and stability.
6. Sound and light alarm system, abnormal information text prompts, easy operation, and maintenance.
7. Standard SMEMA signal communication.
8. Standard two upper modes are especially suitable for the
production of single-line mode with double panel.
9. Optional AGV docking function.
Technical Parameters
Description: Used to automatically send circuit boards to the production line
No. of magazine: Upper conveyor 1 nos. Lower conveyor 2 nos Time for feed PCBs: Approx. 6 seconds or specified by customer
Magazine changeover time: Approx. 35 seconds or specified by customer Indexing pitch: 10, 20, 30, 40 mm pitch or specified by customer
Power supply and electric load: 220V (AC, SP) 600VA max
Air pressure and airflow: 4~6 bar, Up to 0.2 l/min
Thickness of PCBs: 0.6 mm min
Specifications & Parameters
Size: M
Model: SL-3ZM
Circuit board effective size (mm): 80(L) × 50(W) – 330(L) × 250(W)
Transmission height (mm): 900 ± 20 (mm)
Dimensions (mm): 2030(L) × 1050(W) × 1760(H)
Common name of magazine: 803#
Weight (kg): 245 kg
Size: L
Model: SL-3ZL
Circuit board effective size (mm): 80(L) × 50(W) – 460(L) × 330(W)
Transmission height (mm): 900 ± 20 (mm)
Dimensions (mm): 2030(L) × 1050(W) × 1760(H)
Common name of magazine: 806#
Weight (kg): 355 kg
Size: XL
Model: SL-3ZXL
Circuit board effective size (mm): 80(L) × 50(W) – 510(L) × 460(W)
Transmission height (mm): 900 ± 20 (mm)
Dimensions (mm): 2550(L) × 1080(W) × 1200(H)
Common name of magazine: 803# & 809#
Weight (kg): 400 kg
