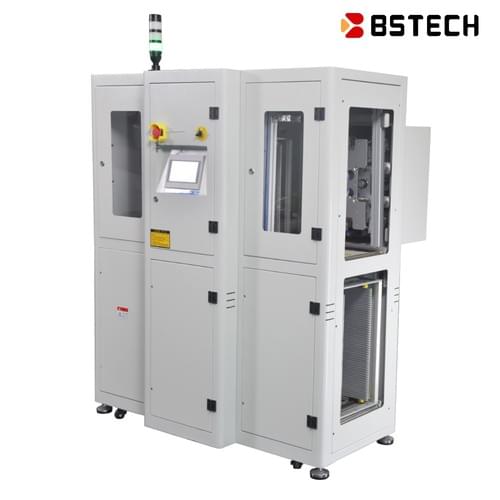

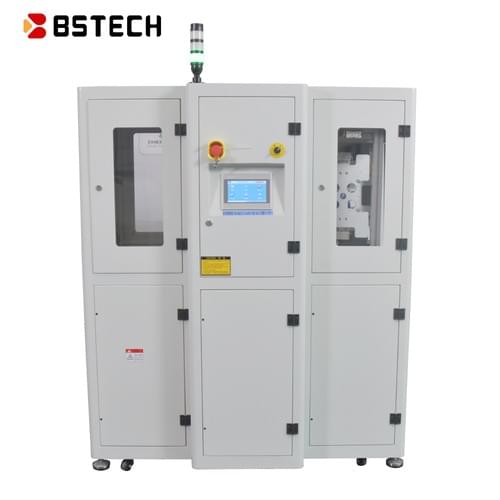

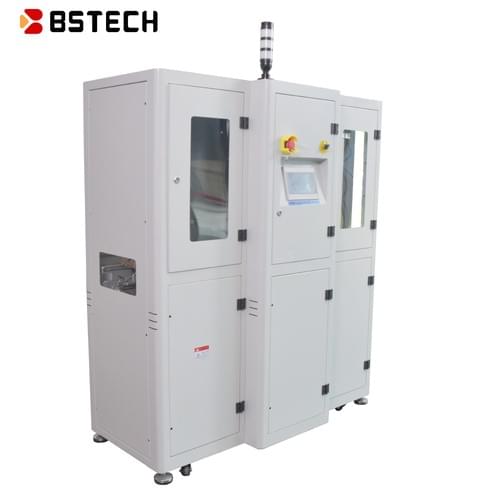

ZL-3BM Automatic Unloader
Features:
1. PCB unload for SMT production line.
2. User-friendly “touch panel” and PLC controller.
3. Used step motor to push PCB, with fast, smooth, and adjustable pushing speed and pushing force.
4. Equipped with the auxiliary positioning braking system, pinpoint with high rate, improve efficiency obviously.
5. Multi-circuit electrical distribution protection ensures safety and reliability.
6. Audio and video alarm system, prompt anomaly information with words, convenient in operation and maintenance.
7. SMEMA compatible.
8. The welded sheet metal structure provides excellent stability, with a baked enamel finish in RAL9003 international color, offering a sleek, durable, and age-resistant appearance.
9. Automatic adjustment of material frame dimensions saves labor while ensuring precise width alignment with production requirements
1. PCB unload for SMT production line.
2. User-friendly “touch panel” and PLC controller.
3. Used step motor to push PCB, with fast, smooth, and adjustable pushing speed and pushing force.
4. Equipped with the auxiliary positioning braking system, pinpoint with high rate, improve efficiency obviously.
5. Multi-circuit electrical distribution protection ensures safety and reliability.
6. Audio and video alarm system, prompt anomaly information with words, convenient in operation and maintenance.
7. SMEMA compatible.
8. The welded sheet metal structure provides excellent stability, with a baked enamel finish in RAL9003 international color, offering a sleek, durable, and age-resistant appearance.
9. Automatic adjustment of material frame dimensions saves labor while ensuring precise width alignment with production requirements
More Details
Technical Parameters
Model: ZL-3BM
PCB size: 80×50 mm ～ 350×250 mm, Weight ≤ 2.0 kg, Thickness 0.6 ～ 5.0 mm
Conveyor height: 900 ± 20 mm
Dimensions: L1980×W710×H1200 mm (without tricolor lighthouse)
Weight: 145 kg
Magazine model & quantity: 803# (L355×W320×H565 mm), 1 upper rail, 2 lower rails
Loading time: About 10 seconds or manual operation
Change-over time: About 25 seconds without width adjustment, 45 seconds with width adjustment
Step index: 10, 20, 30, 40 or specify
Power: AC 220V 50Hz, single-phase supply, max. to 300VA
Air pressure and flow rate: 4 ～ 6 bar, ≤ 0.1 L/min
Control method: Panasonic PLC + 7-inch touch panel
MES connection: Standard network port, connected to a single MES server
